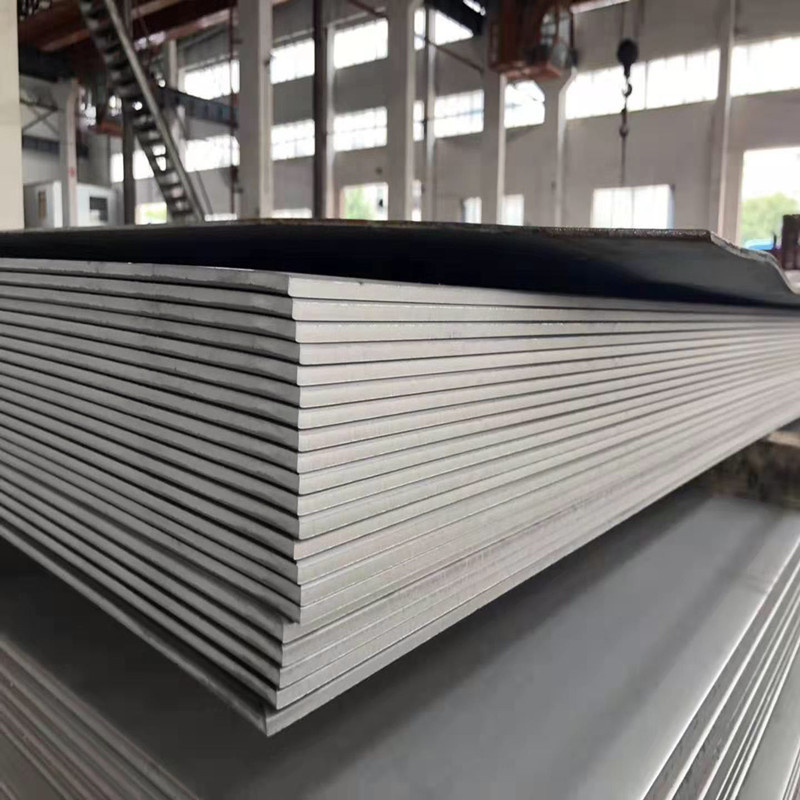

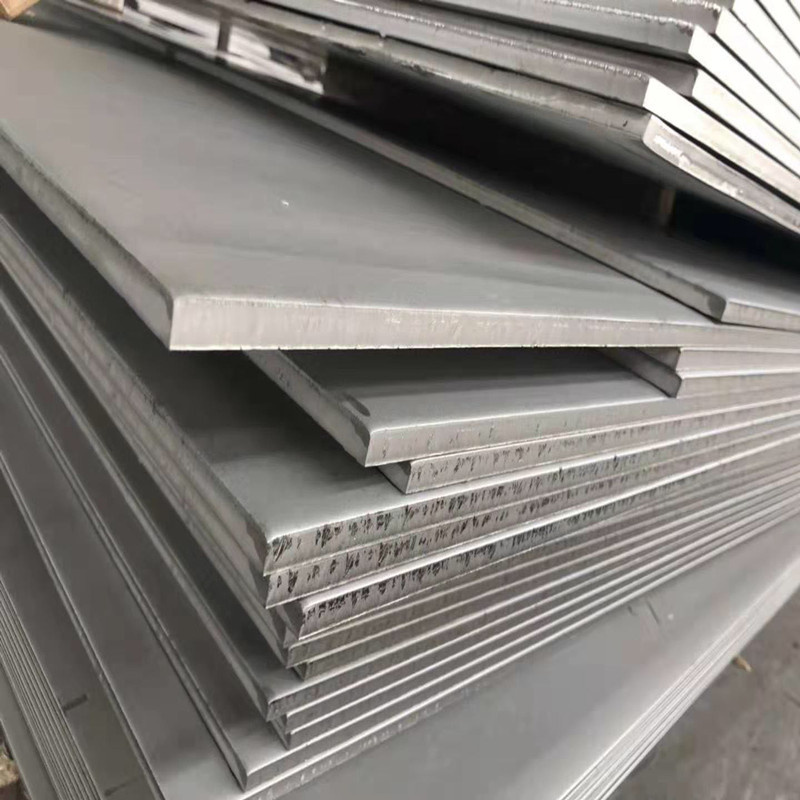

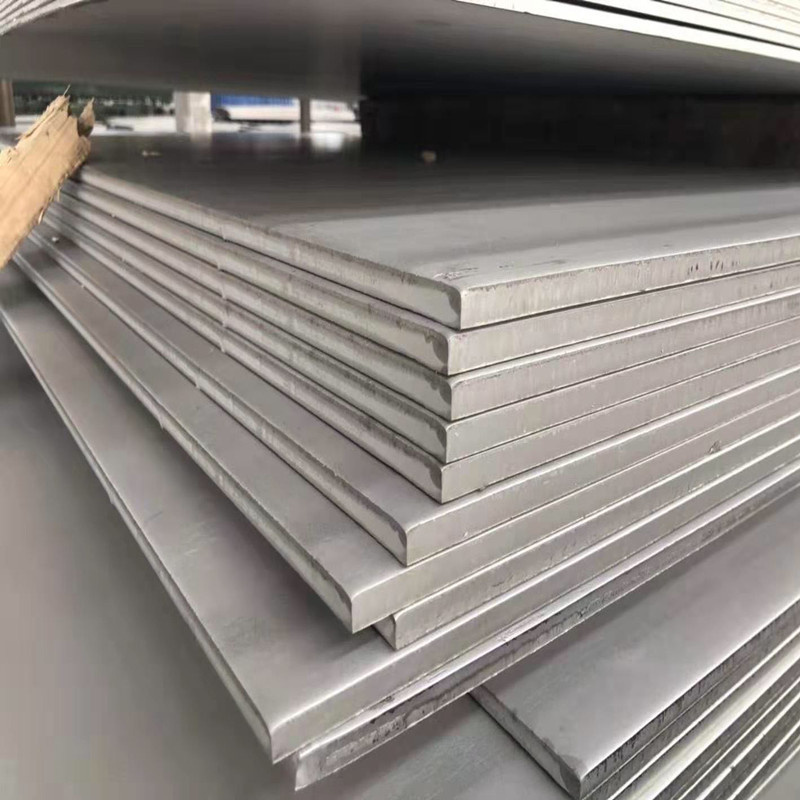

304L Stainless Steel Plate

Place of Origin: Shanghai, China

Material: Stainless steel Plate

Payment Term：T/T, L/C, Western Union, etc

Design Style: Customizable

Size: Customizable

Delivery Time: 7 Days

Transportation: By sea or Land transportation

Package: Standard Export Seaworthy Package

Own Factory: Competitive price and Quality

OEM/ODM

Email：info@hjd-steel.com

WhatsApp：+86 13373608768

Inquiry Now →

Parameter

Stainless Steel Plates Sizes, Shapes & Specification

Shanghai Hongjuda Steel Co., Ltd. is a top Stainless Steel Plate Supplier in China, our specification include different material as 202, 304, 316 and standards as ASTM A240, JIS4304-2005 and more.

Specification	Stainless Steel Plate(Hot rolled, cold rolled)
Standard	ASTM A240, JIS4304-2005, ASTM A167, EN10088-2-2005, GB/T3280-2007, etc
Material	201, 202, 304, 304L, 304H, 309, 309s, 316, 316L, 317, 317L, 321, 321H, 310, 347, 347H, 410, 416, 420, 430, 440, 904, 904L
Surface	the surface and finish of stainless steel Plate:2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching, etc
Thickness	5mm-100mm
Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Brand:	Kuwait Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Taiwan Origin
Manufacturer:	POSCO, Aperam, Jindal Stainless, DKC Korea, Thyssenkrup, Baosteel, TISCO, Arcelor Mittal, VDM, Nippon Metal, Outokumpu
Package	Standard export package, suit for all kinds of transport, or as required.

Stainless Steel Plate Manufacturer Chemical Composition

According to the Stainless Steel Plate Manufacturers, the composition include a combination of Carbon, Manganese, Phosphorus, Sulfur, Silicon, Nickel, Nitrogen, and 16-18% Chromium.

Grade	C (Max)	Mn (Max)	P (Max)	S (Max)	Si (Max)	Cr	Ni	Mo	Nitrogen (Max)	Cu/ Others
301	0.15	2.00	0.045	0.030	1.00	16.00 – 18.00	6.00 – 8.00	–	0.10	–
304	0.08	2.00	0.045	0.030	0.75	18.00 – 20.00	8.00- 10.50	–	0.10	–
310S	0.08	2.00	0.045	0.030	1.50	24.00- 26.00	19.00 – 22.00	–	–	–
316	0.08	2.00	0.045	0.030	0.75	16.00 – 18.00	10.00 – 14.00	2.00 – 3.00	0.10	–
316L	0.030	2.00	0.045	0.030	0.75	16.00 – 18.00	10.00 – 14.00	2.00 – 3.00	0.10	–
321	0.08	2.00	0.045	0.030	0.75	17.00 – 19.00	9.00 – 12.00	–	0.10	Ti5 ( C + N ) Min or 0.70 max
409	0.08	1.00	0.040	0.010	1.00	10.50 – 11.75	0.50	–	–	Ti= 6x (C+ N ) Min or 0.70 Max
410	0.15	1.00	0.040	0.030	1.00	11.50- 13.50	0.75	–	–	–

Stainless Steel Plate Supplier Mechanical Properties

The mechanical properties that Stainless Steel Plate Manufacturer keep in mind include: – Tensile Strength: 515 or 380 – Yield Strength: 205 or 170

Grade	TensileStrength Mpa, (Min)	YieldStrengthMpa, (Min)	%AgeElongationin 50mmgauge length min	Hardness (Max)
Grade	TensileStrength Mpa, (Min)	YieldStrengthMpa, (Min)	%AgeElongationin 50mmgauge length min	BHN	Rb
304	515	205	40	201	92
310S	515	205	40	217	95
316	515	205	40	217	95
317	515	205	35	217	95
317L	515	205	40	217	95
321	515	205	40	217	95
409	380	170	20	179	88
410S	415	205	22	183	89
410	450	205	20	217	89

Whatever size stainless steel sheet you require, we can help

All three finishes of our stainless steel sheet are available in a wide variety of dimensions to match your individual requirements. And with our free unlimited cutting service, we can easily accommodate any custom sizes you may require.

With a choice of thickness of between 0.9mm and 3mm, and sizes ranging from as small as 50mm x 50mm up to 2500mm x 1250mm, we can fulfil any size requirements you may have. What’s more, we offer free unlimited cuts with any order, using a high-quality guillotine to precisely match your specifications.
