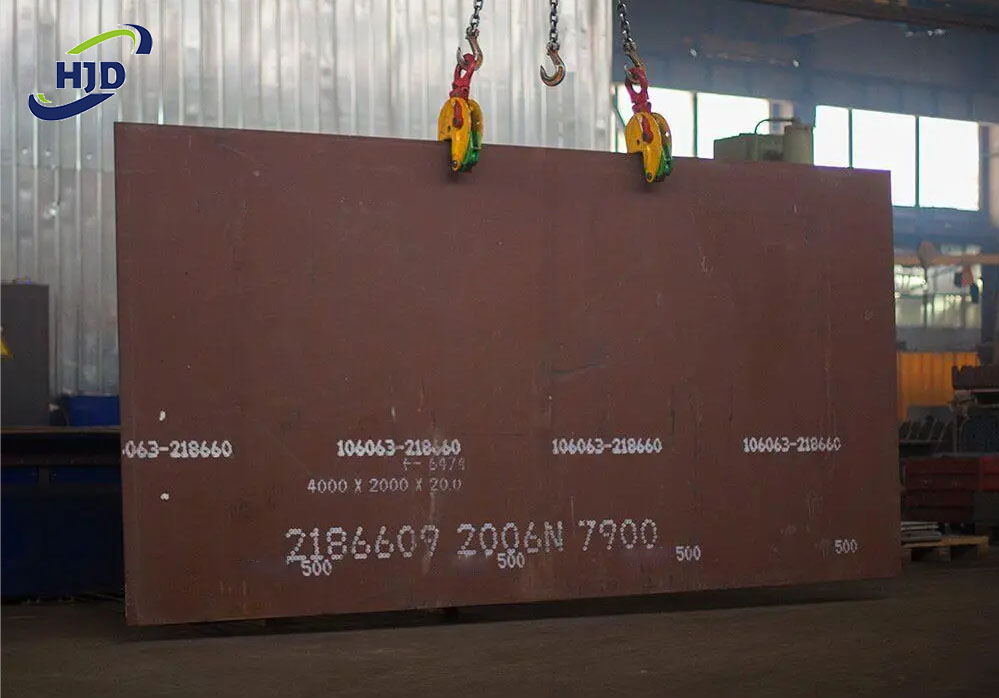

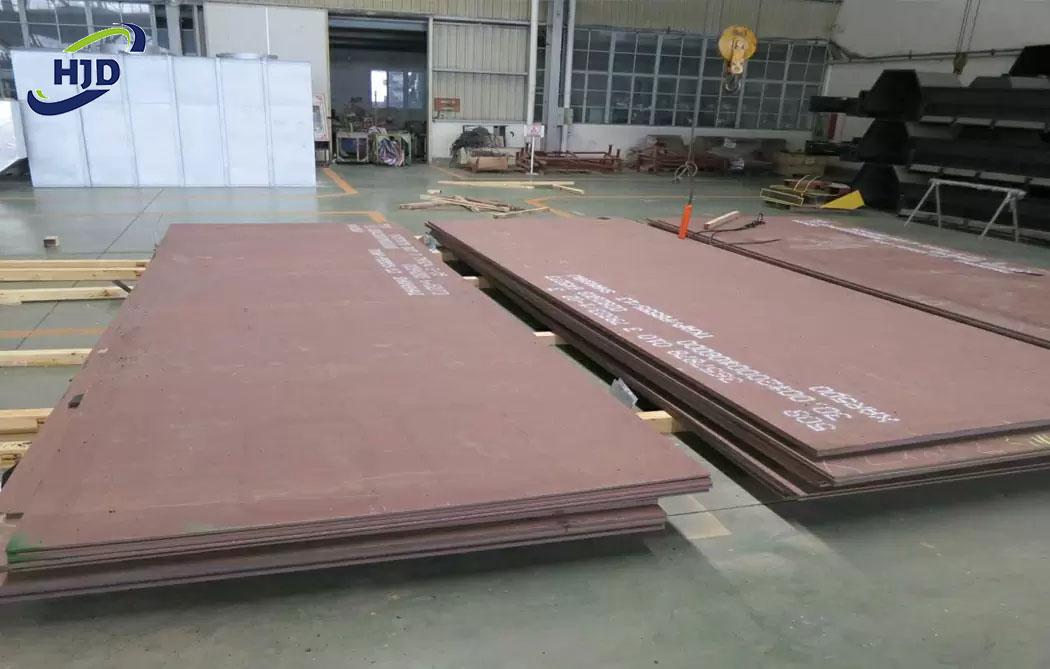

Wear Plate/Sheet

Place of Origin: Shanghai, China

Certifications: ISO 9001,SGS,BV

Size: Customizable

Delivery Time: 7 Days

Payment Term: T/T, L/C, WeChat pay, Alipay, etc

Our Own Factory: Competitive price and quality

Quick delivery and standard exporting package

OEM/ODM

Quick delivery

Standard Export Seaworthy Package.

Suit for all kinds of transport, or as required

Email：info@hjd-steel.com

WhatsApp：+86 13373608768

Inquiry Now →

Parameter

Type	Wear Plate
Standard	GB,AISI,ASTM,DIN,EN,JIS
Grade	Wear Plate: 400 / 450 / 500 / 550 / 600
	Monel 400 / Monel K-500
	Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690 / Inconel 718 / Inconel X-750
	Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT
	Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926
Thickness	Hot Rolled 2.5mm-200mm
Thickness	Cold Rolled 0.3mm - 6mm
width	Hot Rolled 1000mm-3500mm
width	Cold Rolled 10mm - 2000mm
Finish	2B, NO.1, HL, NO.4, 4K, 8K, sandblast, BA
Inspection	TUV,BV,ABS,LR and so on
Application	Construction, Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing, Aviation, ChemicalFertilizer, Sewage Disposal, Desalination, Waste Incineration etc.
Processing Service	Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining
	Deformation processing : Bending / Cutting / Rolling / Stamping
	Welded
	Forged

Material Specification Chart of Monel K500 Decorative Sheets

Specifications	ASTM / ASME SB 127
Size	1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness	0.1mm to 12 mm Thk
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Steel Grade	Chemical Composition
Steel Grade	C *)(max %)	Si *)(max %)	Mn *)(max %)	P(max %)	S(max %)	Cr *)(max %)	Ni *)(max %)	Mo *)(max %)	B *)(max %)
Wear Plate 400	0.32	0.70	1.60	0.025	0.010	1.40	1.50	0.60	0.004
Wear Plate 450	0.18	0.25	1.30	0.015	0.004	0.10	0.10	0.04	0.003
Wear Plate 500	0.30	0.70	1.60	0.020	0.010	1.50	1.50	0.60	0.005
Wear Plate 550	0.37	0.50	1.30	0.020	0.010	1.40	1.40	0.60	0.004
Wear Plate 600	0.47	0.70	1.4	0.015	0.010	1.20	2.50	0.70	0.005

Inconel alloys vary widely in their compositions, but all are predominantly nickel, with chromium as the second element.

Inconel

Element, proportion by mass (%)

Nb & Ta

600[18]

≥72.0[a]

14.0–17.0

6.0–10.0

—

≤1.0

≤0.5

≤0.15

≤0.015

617[19]

44.2–61.0

20.0–24.0

≤3.0

8.0–10.0

10.0–15.0

≤0.5

0.8–1.5

≤0.6

≤0.5

0.05–0.15

≤0.015

≤0.006

625[20]

≥58.0

20.0–23.0

≤5.0

8.0–10.0

3.15–4.15

≤1.0

≤0.5

≤0.4

≤0.5

≤0.1

≤0.015

690[21]

≥58

27–31

7–11

≤0.50

≤0.05

≤0.015

Nuclear grade 690[21]

≥58

28–31

7–11

≤0.10

≤0.50

≤0.04

≤0.015

718[2]

50.0–55.0

17.0–21.0

Balance

2.8–3.3

4.75–5.5

≤1.0

≤0.35

≤0.3

0.2–0.8

0.65–1.15

≤0.35

≤0.08

≤0.015

≤0.006

X-750[22]

≥70.0

14.0–17.0

5.0–9.0

0.7–1.2

≤1.0

≤0.5

0.4–1.0

2.25–2.75

≤0.5

≤0.08

≤0.01

Material thickness, mm	Max CET	Max CEV	≈ CET	≈ CEV
Sheet 2.0 - 7.0	0,38	0,49	0,33	0,45
Broad-sheet rolled products 4,0 – 13,0	0,38	0,53	0,37	0,51
Broad-sheet rolled products 13,1 – 19,9	0,43	0,64	0,41	0,63
Broad-sheet rolled products 20,0 – 39,9	0,45	0,66	0,41	0,63
Broad-sheet rolled products 40,0 – 103,0	0,47	0,75	0,43	0,72

Please contact us if necessary!
