Grade50 Sheet Piles

Place of Origin: Shanghai, China

Material: steel sheet pile

Payment Term:T/T, L/C, Western Union, etc

Design Style: Customizable

Size: Customizable

Delivery Time: 7 Days

Transportation: By sea or Land transportation

Package: Standard Export Seaworthy Package

Own Factory: Competitive price and Quality

OEM/ODM

Inquiry Now →

Parameter

specifications

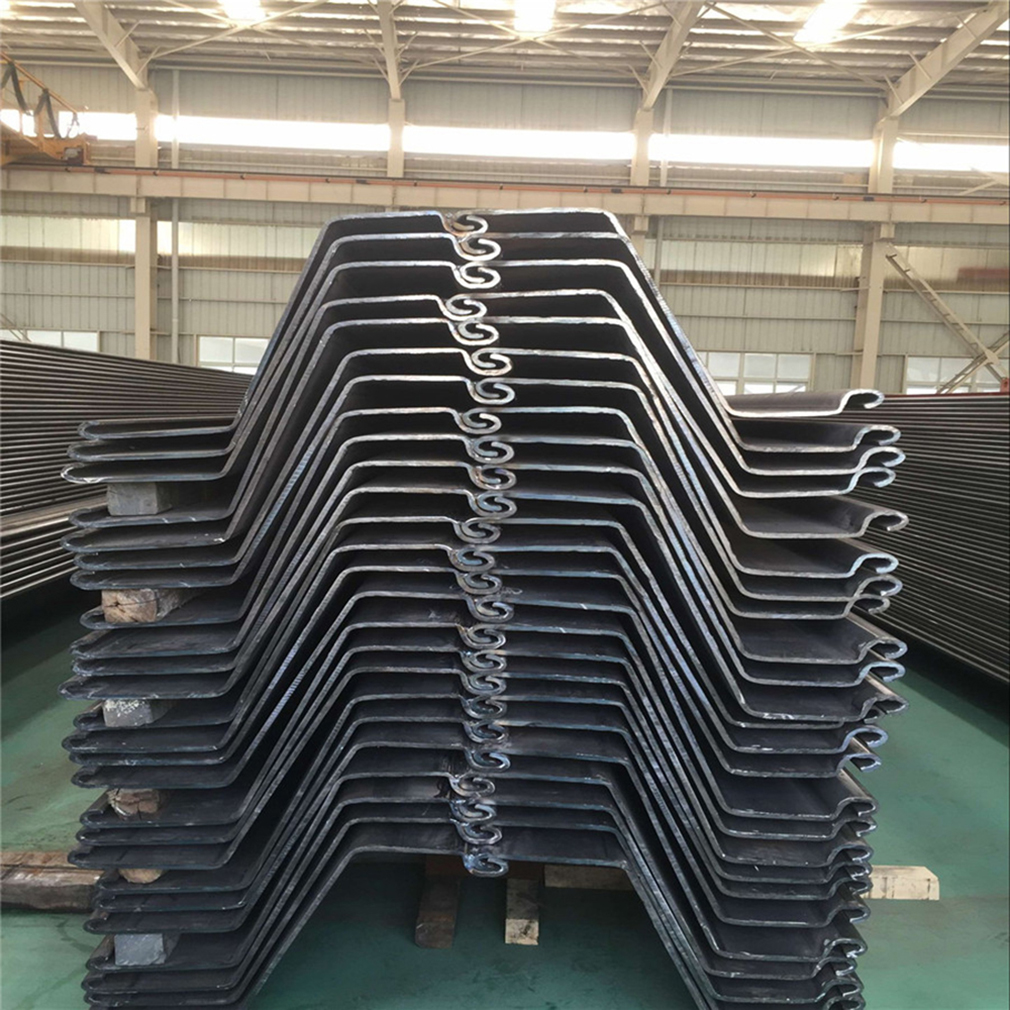

Product NameZ type cold formed steel sheet piles
Steel GradeS275,S355,S390,S430,SY295,SY390,Grade50,Grade55,Grade60,A690
Length 9,12 ,15, 20m as required Max.24m
DimensionsAny width x height x thickness
StandardEN10249,EN10248,JIS A 5523 and JIS A 5528,ASTM A328 / ASTM A328M
Corner sectionsCold formed interlock or clutches
Installation byExcavator hydraulic or diesel vibration hammers
Suppliers kindU,Z,L,S,Pan,Flat,hat profiles



Our Advantages

1. The biggest sheet pile manufacturer in China,we have exported into over 180 different countries

2.We can produce all types of sheet piles,pipe piles and accessories,we can adjust our machines to produce in any width x height x thickness

3.We can produce single length up to over 100m,and we can do all painting,cutting,welding etc fabrications in factory

4.Fully internationally certified:ISO9001,ISO14001,ISO18001,CE,SGS,BV etc..

5.We can give advice and suggestions on drive and installation of sheet piles and pipe piles etc.


All specifications products can be customized according to customer requirements
Width400-750mm as required
Thickness6-25mm as required
MaterialQ234B/Q345B JIS A5523/SYW295,JISA5528/SY295,SYW390,SY390 ect.
ShapeU,Z,L,S,Pan,Flat,hat profiles
Steel gradeSGCC/SGCD/SGCE/DX51D/DX52D/S250GD/S280GD/S350GD/G550/SPCC S275,S355,S390,S430,SY295,SY390,Grade50,Grade55,Grade60,A690
TechniqueHot rolled
StandardASTM AISI JIS DIN EN GB Etc
Tolerance±1%
MOQ1 ton, sample order is also OK
CertificateISO CE Etc
Payment methodT/T, D/A, D/P, L/C, Western Union, MoneyGram or according to customer requirements
ApplicationCofferdam /River flood diversion and control/Water treatment system fence/Flood protection Wall/Protective embankment/Coastal berm/Tunnel cuts and tunnel bunkers/Breakwater/Weir Wall/ Fixed slope/ Baffle wall
PackageStandard packaging, can be packaged according to customer requirements



1) Pitch and Drive – loose soils and short piles.

Pitch and drive is the simplest method for sheet pile driving, it involves driving each sheet pile to full depth before pitching the next one. However it is only suitable for loose soils and short piles.

2) Panel Driving – dense sands and hard cohesive soil.

The purpose of using panel driving is to ensure that the sheet piles are driven with good alignment and verticality. The risks of driving difficulties and problems of de-clutching also can be minimised. As a whole panel of piles is pitched there is no need to drive all piles fully to maintain piling operations. If obstructions are encountered, individual piles can be left high without fear of disruption to the overall efficiency. Panel driving is suitable for dense sands and hard soils.

3) Staggered Driving – dense sand, gravel or rock.

In difficult soil conditions, panel installation combined with staggered driving is more suitable in driving process. The piles are installed between guide frames and then driven in short steps as follows: piles 1, 3 and 5 first; then piles 2 and 4. If the soil is very dense sand, gravel or rock, piles 1, 3 and 5 can be reinforced at the toe. In this case, these piles are always driven first and piles 2 and 4 in the second stage.
